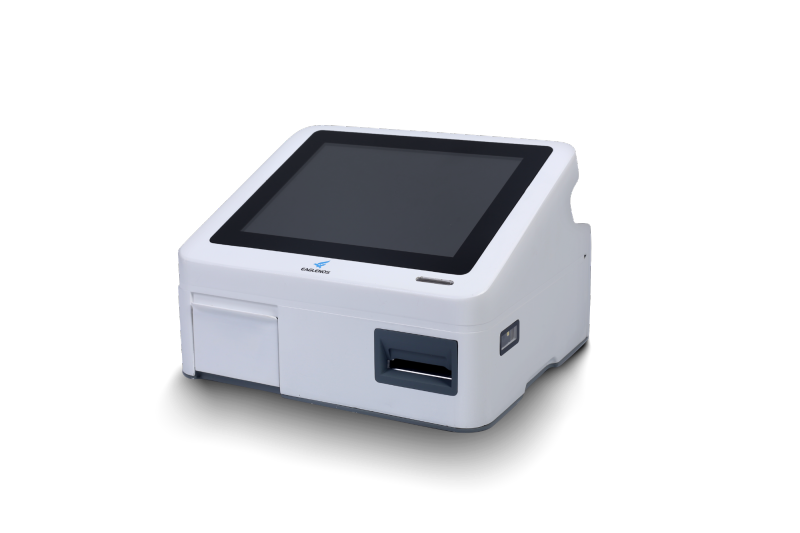

Name: Dry Type Blood Gas Analyzer
Brand: Accuradiagnostic
SKU: 00189
Availability: InStock
Rating: 5 (1 reviews)

Home > Human Health Diagnosis Platform > Biochemical&Blood Gas Pla...

Description

Feature

Accurate, reliable and maintenance-free
Self-calibration for each test
Accurate results in approximately 5 minutes
Dry chemistry method, no reagent pack required, no carry-over contamination

Lightweight and portable.
Rechargeable lithium battery: more than 50 tests Size: 235mm×210mm×160mm
Weight: 3±0.5 kg (including battery)

Easy-to-use
Quick start tutorial
8-inch full HD touchscreen

Smart identiﬁcation in cartridge
Feedback of cartridge insertion
Identiﬁcation of the cartridge expiration date

Automatic quality control
Regular QC reminders
Power on Self-Test
Dual quality control: electronic simulator and controls

Specification

Item	Specification
Specification	EN102
Test Principle	Microfluidic,dry electrochemical
Sample Volume	150UL
Sample Type	Whole blood （Artery, Vein）
Measured parameters	K+, Na+, Cl-, iCa2+, pH, CO2, O2, Glu, Lac, Hct
Calculated parameters	HCO3 -, TCO2, BE-ecf, SO2, Gap, Gap-K+, O2(T), CO2(T), pH(T), BE(b), O2(A-a), O2(a/A)
Printers	Build-in themal printerAC100-240V 50/60Hz
Testing time	5 mins
Cartridge storage condition and valid time	2℃-8℃, 8 months 9℃-30℃, 4 months
Analyzer working condition	Temperature 18 C–30 C Relative Humidity 25% 75% (without condensation) Atmosphere pressure 86 kPa 106.6 kPa

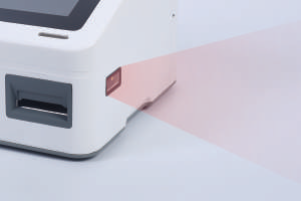

Built-in code scanner	Yes
Built-in printer	Yes
LIS/HIS Connection	Yes (Ethernet,WIFI)
Weight	235210160mm 3.0Kg with battery 9 inches colorful capacitive touch display

Application

Emergency Department: Monitoring of blood gases, metabolites and electrolyte parameters for emergency critical care patients such as poisoning, coma and convulsions

ICU:Monitoring of blood gases, metabolites, electrolytes and acid-base balance for critically ill patients
Anesthesiology:Blood gases and electrolyte monitoring during surgical anesthesia (preoperative, intraoperative, postoperative.
Surgery:Blood gases, electrolyte and acid-base balance monitoring during surgery
Pediatrics/Fever Clinics:Electrolyte monitoring for outpatient infusion
Respiratory:Determine the classiﬁcation of respiratory failure, assessment of the degree of hypoxia, and guidance on ventilator adjustment
Gastroenterlogy:Electrolyte and acid-base balance monitoring in patients with diarrhea and vomiting with coma
Cardiology:Blood gases and electrolyte monitoring in patients with heart attack
Endocrinology:Blood gases, metabolites, electrolyte and acid-base balance monitoring in patients with diabetic ketoacidosis.
Neurology:Blood gases and acid-base balance monitoring in patients with stroke and coma
Obstetrics and Gynecology/Neonatolgy:Diagnosis of neonatal asphyxia, assessment of neonatal pulmonary disease and monitoring of acid-base balance

Operation:
Step 1:Scan the barcode on the cartridge pouch

Step 2: Fill the inlet with sample and slide the cap to seal the sample inlet.

Step 3:Insert the cartridge until it clicks. Wait for the results.
