Feature
Free program setting
Rapid extraction and High Sensitivity
Hight Purity and high Yield
Pollution control
Data output
Independent and accurate temperature control
Operation easily,rapidly with reliable result.
Specification
| Item |
Specification |
| Specification |
Smart-32 |
| Reaction Volume |
20-1000ul
|
| Sample volume |
≤600ul
|
| Sample handling capacity |
1-32 samples |
| Extrction plate |
2 units of 96 extraction plates |
| The collection rate of Magnetic beads |
≥95% |
| Temperature range |
30℃~90℃ |
| Oscillation speed for Mix |
Fast medium and slow speed for different requirement |
| Different between extrcting hole |
for the extraction of the same sample, the variation coefficient of CT value between holes is less than 3% |
| Sensitivity of Nucleic acid extraction |
For extraction of the 30iu/ml sample, the positive rate is more than 95% |
| Rapid program setting |
8 sets of rapid program for setting, The extraction could be started after 2 clicks at least |
| Connection |
RS232/RJ245/USD.,etC |
| UV |
yes |
| Extraction time |
30-60min/time |
| Power supply |
AC110~240V,50Hz/60Hz,800VA |
| Operation humidity range |
10℃~30℃ |
Introduce

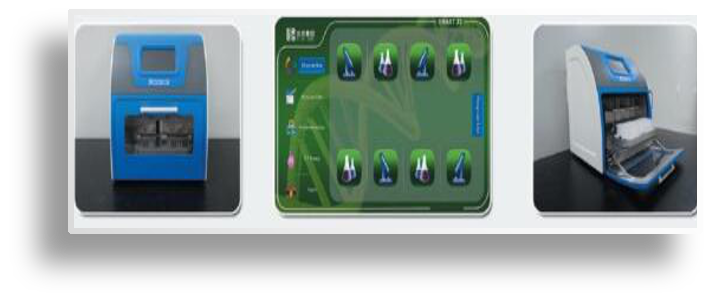

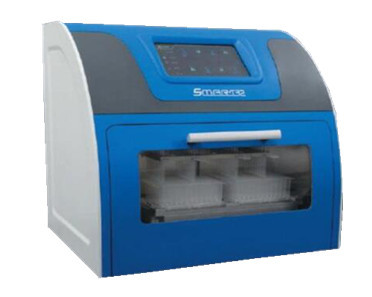

Smart-32 Nucleic Acid Extraction instrument is an instrument owing the functions of temperature control,oscillation and blending, can crack sample and release the nucleic acid under the appropriate conditions, blend the magnetic beads with nucleic acid,elute and release the nucleic acid, transfer and separate the magnetic bead through magnetic device, at last extract the nucleic acid material from the samples. Instrument can extract a single sample or 32 samples at the same time. The user can edit experiment procedure,monitori experiment condition, open or close the ultrviolet light disinfection functions through the touch screen, Itoperates easily,rapidly with reliable result.
Application:
With the corresponding magnetic beads method and nucleic acid extracting reagent,this intrument can rapid extrct DNA and RNA from plant and nimal tissue, fulid,blood,food and pathogenic microbes sammples. The instrument is suitble for nucleic extraction and purification of biological samples.
